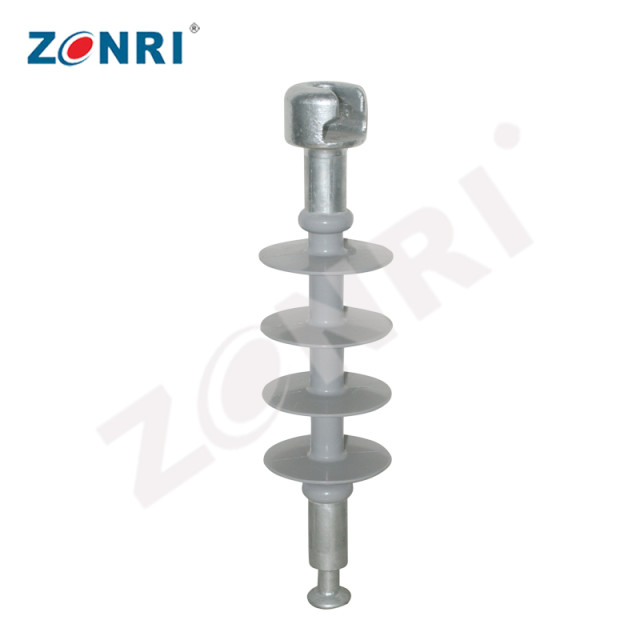

This product have good electrical specification, strong mechanical strength, tensile bending of the epoxy glassfiber rod of internal loadbearing is double than normal rolled steel ,8~10 times of high strength porcelain material, can effectively improve the reliable of sale operation.
Product model
Rated voltage(kV)
Rated mechanical bending load(kN)
Structure height (mm)
Minimum arc distance (mm)
Min creepage distance (mm)
Diameter of shed (mm)
Lightning impulse withstand voltage kV
P.F. 1 min withstand voltage(Virtual value)(kV)
FXBW-10/70
10
70
360
230
450
92
100
35
